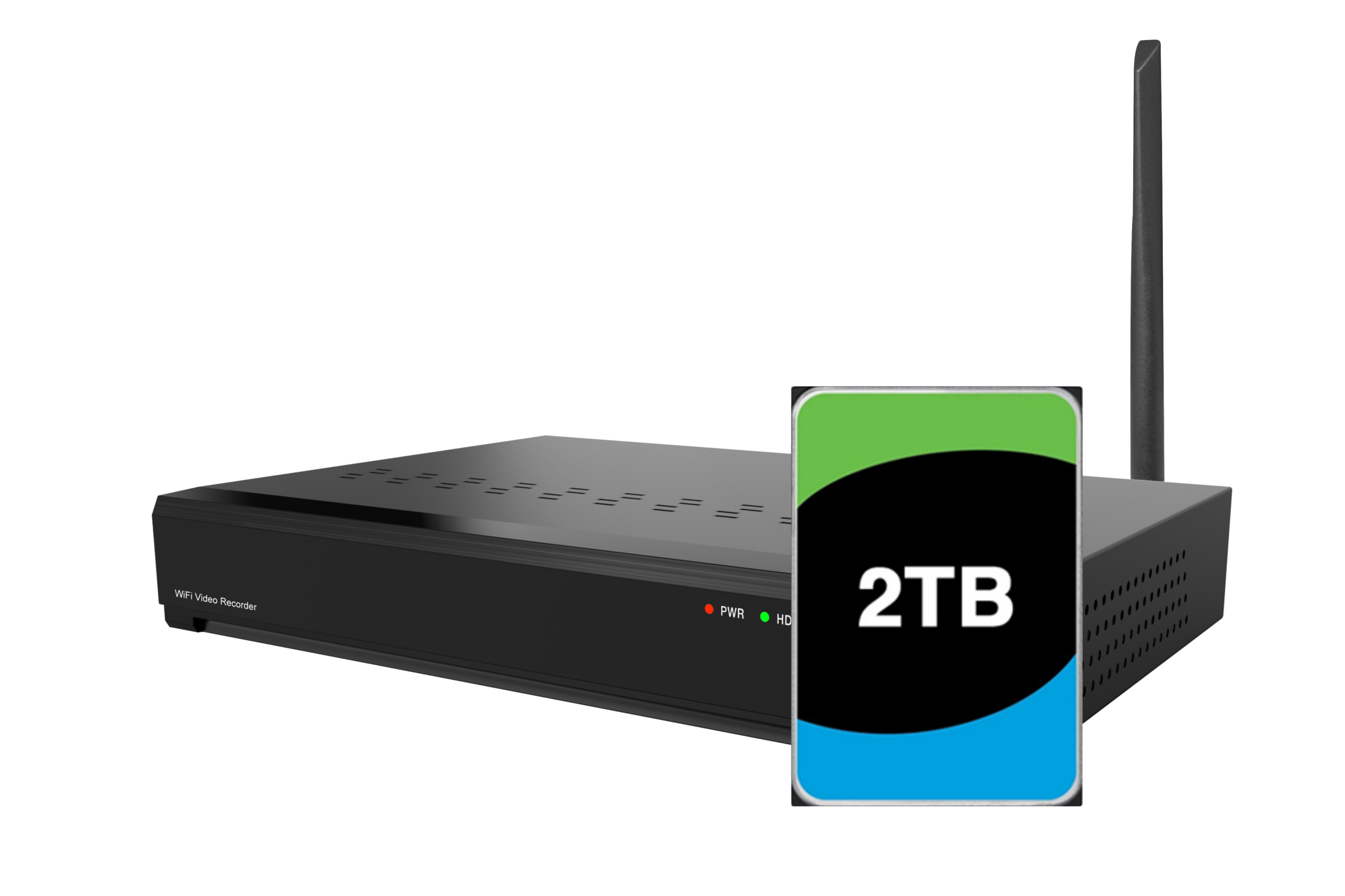

HR108XA-2TB Wireless NVR New
NVR
- IP66
Product Overview
The iVSEC HR108XA-2TB is a next generation 8 channel NVR with a pre-installed 2TB HDD that is engineered for sites where traditional Wi Fi and cabling falls short. Powered by HaLow technology (802.11ah), the HR108XA delivers ultra long range wireless penetration, exceptional stability, and low power connectivity making it ideal for farms, warehouses, large residential blocks, and remote infrastructure.
Designed to pair seamlessly with iVSEC’s HaLow camera range, the HR108XA creates a secure, long distance wireless network capable of reaching hundreds of metres through walls, foliage, and industrial environments where standard 2.4/5GHz Wi Fi struggles. The result is a robust, scalable surveillance solution without the cost and complexity of trenching cables or installing repeaters.
The HR108XA supports 8 channels of high definition recording, smart analytics, and remote access through the iVSEC app, when the NVR is connected to the internet. With flexible storage options, intuitive setup, and enterprise grade reliability, it brings professional level performance to locations that were previously difficult or impossible to secure.
Technical Specifications
| Maximum Channels | 8 |
| Maximum Video Resolution (Megapixels) | 8MP |
| Examples of Channels at a resolution with FPS | 32 Mbps |
| Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Video Output Resolution | 4K, HD-1080p, HD-720p, VGA |
| Image Display | 1, 4, 6, 8, 9 |
| Intelligent Video (Dependant On Camera) | Human Detection, Motion Detection |
| Total Storage Potential (TB) | 6 |
| HDD Bays, Size | Bays x 1, 2TB pre-installed, up to 6TB HDD |
| RAID | n/a |
| Protocols | CP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, DHCP, SMTP, DNS, DDNS |
| Audio Streaming | Audio out |
| Wi-Fi | Wi-Fi Halow (802.11ah) |
| Wireless Distance | up to 700m* |
| Non Power Over Ethernet Ports | 1 |
| Power Over Ethernet Ports | 0 |
| Power Over Ethernet | No |
| Power Supply | Plugpack (12V DC / 2A) |
| Power Consumption | 7W |
| Connectors | HDD: 3.5″ SATA HDD Slot x 1, USB2 Female x 2, Megabit Ethernet: RJ-45 Port x 1 |
| Operating Environment | 0ºC to 40ºC (32ºF-104ºF) Humidity: 20%-85% RH |
| In The Box | Printed quick installation guide, Mouse, HDD screws, Power supply. |
| Warranty | 3 Years Parts |
| Product Dimensions (H x W x L) mm | 53 x 300 x 227 |
| Packaging Dimensions (H x W x L) mm | 100 x 430 x 270 |
| Weight (Net) kg | 1.25 |
| Weight (Gross) (kg) | 1.55 |
