NC529XA Security Camera New
Security Camera
- Motorised Zoom
- 100 IR Distance
- Bullet
- IP67
Product Overview

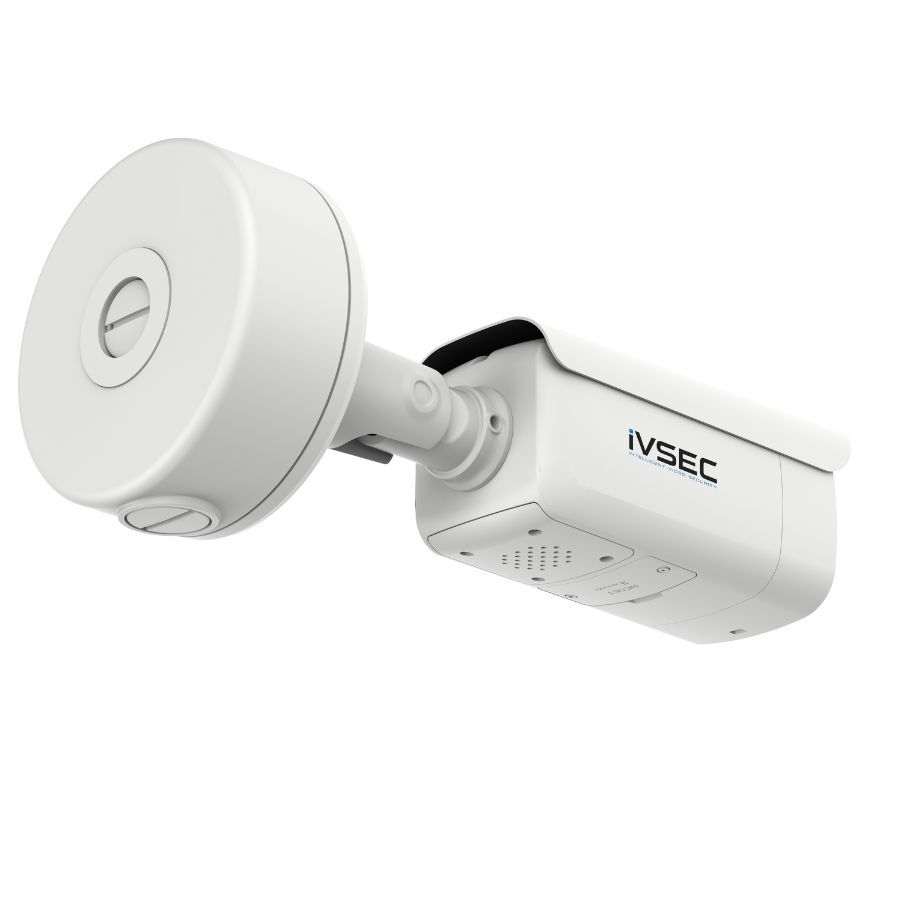

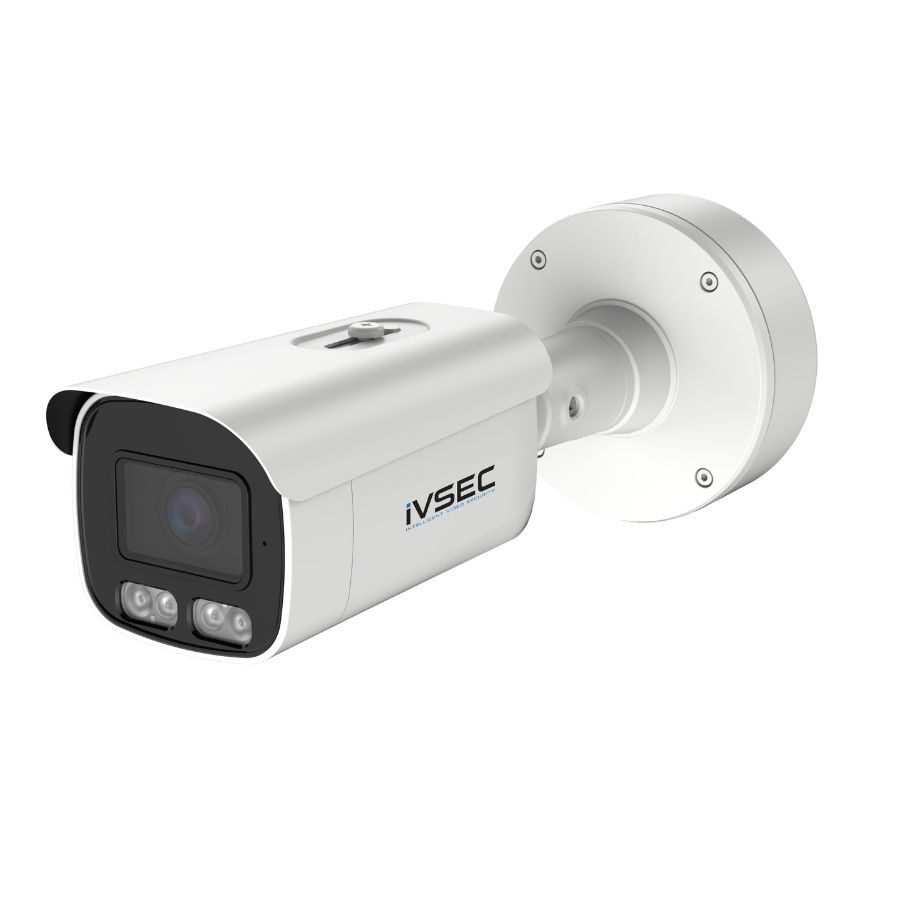

The iVSEC NC529XA is a powerful 8MP bullet camera designed for demanding surveillance tasks where high detail and flexibility are essential. Equipped with an advanced 1/1.8″ progressive scan CMOS sensor, it captures HD resolution at up to 25FPS, making it perfect for high-traffic environments and accurate license plate recognition.
Fitted with a motorised 8–32mm varifocal lens, the NC529XA offers precision in long-range coverage, allowing installers to fine-tune the field of view remotely for optimal monitoring. Thanks to advanced low-light performance and wide dynamic range, it maintains image clarity in both day and night scenarios, even when lighting is uneven or challenging.
Its IP67 rated weatherproof and IK10 vandal-resistant housing ensures robust protection in outdoor environments. The Licence Plate Recognition allows for the licence plate data to be used sent via HTTP or Wiegand, allowing access control such as boom gates and garage doors to work with this camera.
The NC529XA also supports multiple H.265+ video streams, efficient bandwidth usage, and local recording via microSD. With intelligent alerts and seamless integration into either the free iVSEC VMS platform or other VMS software, the NC529XA is ideal for vehicle entry points, perimeter protection, and any location where clarity, reliability, and advanced detection are crucial to site security.
Features
Engineered for reliable protection, NC529XA Security Camera combines advanced imaging and intelligent analytics to deliver smarter security.
Crystal Clear Clarity
High resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
Capture the Moment
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
Cater to your surveillance needs
Device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
Monitor & Update Remotely
View live camera footage, receive alerts on-the-go, schedule alarms and more with the iVSEC App.
Full Vivid Colour
Advanced Features with Vibrant Color and High-Quality Imaging at Night.
Value AI
Complete protection with accurate and targeted alerts to potential threats & reducing false alarms.
Professional AI
Now capable of processing Advanced Al features, thanks to the inclusion of a specifically designed Al Chipset.
Made to Withstand the Elements
With a metal casing, IP66 provides weatherproof monitoring & incredible durability.
Technical Specifications
| Camera Type | Bullet |
| Image Sensor | 1/2.8″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) | 8 |
| Maximum Video Resolution | 3840 x 2160 |
| Frames Per Second (FPS) | 25 |
| Lens | 8 – 32 mm (H.FOV: 14 to 40°) |
| Lens Type | Motorised Zoom |
| Maximum Night IR Distance (M) | 80 |
| LED | Warm White & IR |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF depends on firmware version | ONVIF (Profile S/G/T/M) 21.12 or greater, HTTP API |
| Accessories | IV2422X |
| Outdoor Use | Yes |
| IP Rating | IP67 |
| IK Rating | IK10 |
| Day/Night Mode | Auto |
| Image Enhancement | Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Intelligent Video (IVS) | Cross Counting, Crowd Density Detection, Heat Map, Human & Vehicle Detection, License Plate Detection, License Plate Recognition, Line Crossing Detection, Perimeter Intrusion Detection, Queue Length Detection, Rare Sound Detection, Stationary Object Detection, Face Recognition |
| Licence Plate Recognition Speed | < 120km/h |
| Edge Recording microSD/SDHC Card | Micro SD/SDHC Card |
| Multiple Streams (encode format) | 3 Streams |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Protocols | IPv4/IPv6, TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, SMTP, UPnP, DNS, DDNS, NTP, PPPOE, RTP/RTSP, SNMP, SMTP, P2P (QR Code), RS-485, Wiegand |
| Language | English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Cloud option (camera only) | Dropbox |
| Audio Streaming | Yes (microphone and speaker included) |
| Ethernet | Ethernet (10/100 Base-T) |
| Power Over Ethernet | Yes |
| Power Supply | Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption | < 13W |
| Connectors | RJ-45, DC Power Input, Analog Video Output, Audio In, Audio Out, Alarm in or out *2, Reset Button, RS-485, Wiegand |
| Operating Environment | -35～+60°C/less than ≤ 90% RH |
| In The Box | Free Software available from FTP, Printed quick user guide, installation template, mounting screws and plugs |
| Product Dimensions (H x W x L) mm | 135 x 135 x 354 |
| Packaging Dimensions (H x W x L) mm | 160 x 160 x 400 |
| Weight (Net) kg | 1.50 |
| Weight (Gross) kg | 2.00 |
| Warranty | 3 Year Warranty |
