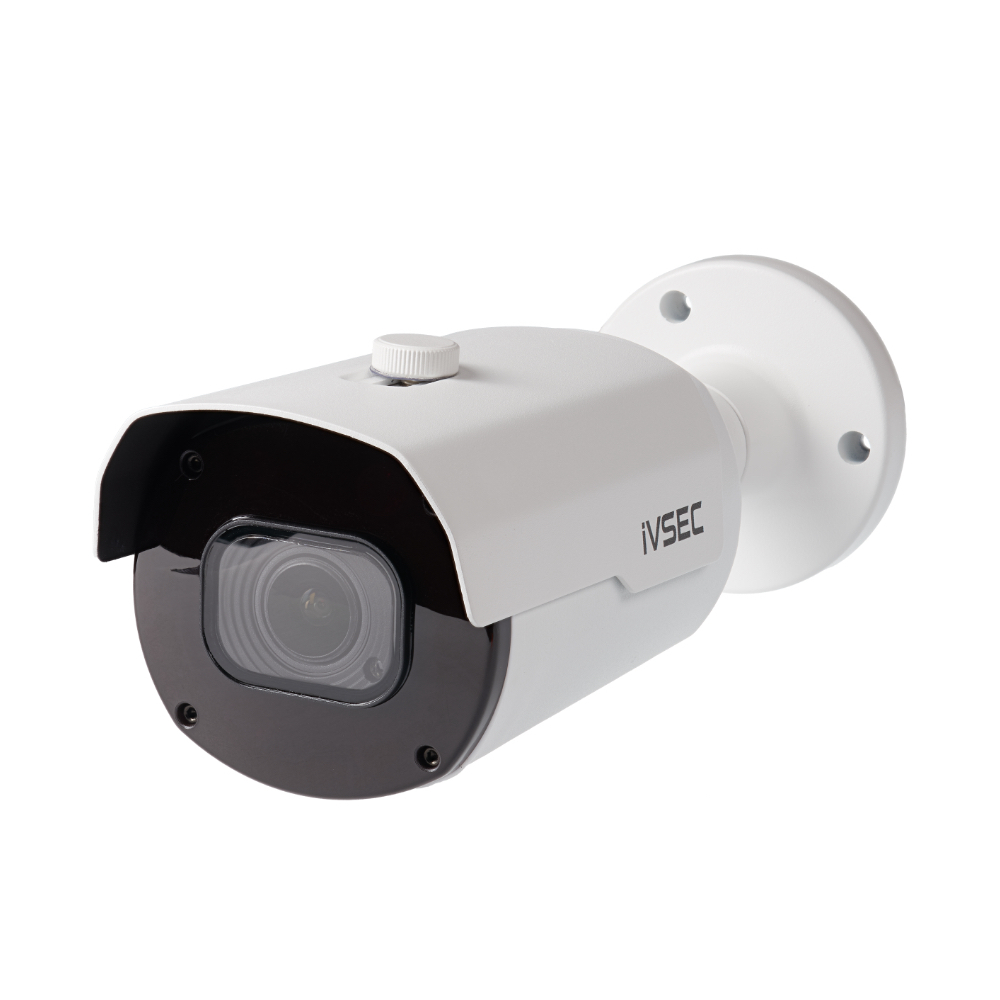

NC531XA Security Camera
Security Camera
- 8MP
- Motorised Zoom
- 45 IR Distance
- Bullet
- IP66
Product Overview
Features
Engineered for reliable protection, NC531XA Security Camera combines advanced imaging and intelligent analytics to deliver smarter security.
Crystal Clear Clarity
High resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
Capture the Moment
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
Cater to your surveillance needs
Device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
Monitor & Update Remotely
View live camera footage, receive alerts on-the-go, schedule alarms and more with the iVSEC App.
Full Vivid Colour
Advanced Features with Vibrant Color and High-Quality Imaging at Night.
Value AI
Complete protection with accurate and targeted alerts to potential threats & reducing false alarms.
Made to Withstand the Elements
With a metal casing, IP66 provides weatherproof monitoring & incredible durability.
Video Management Software
Aggregate NVR/IP cameras easily. Pool viewable camera channels & feeds at numerous locations.
Technical Specifications
| Camera Type | Dome |
| Image Sensor | 1/2.8″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) | 8 |
| Maximum Video Resolution | 3840 x 2160 |
| Lens | 2.8-12 mm (H.FOV: 111 to 33°) |
| Lens Type | Motorised Zoom |
| Maximum Night IR Distance (M) | 45 |
| Image clarity | 4.5 |
| Connectors | RJ-45 , Analog Video Out, Audio In, Audio Out, Alarm in or out *4 |
| Video Compression | H.265, H.264 |
| ONVIF (depends on firmware version) | ONVIF( Profile S/G/T) |
| Operating Environment | -30～+55°C/less than ≤ 95% RH |
| Dimensions | Ø151 X 113mm |
| Weight (Net) | 0.87 |
| Accessories | IV2422X, IV2477X |
| Power Supply | Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption | <9W |
| Connectors (web) | RJ-45 , DC Power Input, Analog Video Output, Audio In, Audio Out, Alarm in or out *4, reset button |
| Outdoor Use | Yes |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Frame Rate at Resolution | 25 |
| Day/Night Mode | Auto |
| Image Enhancement | Rotate, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue |
| Edge Recording slot microSD/SDHC Card | Yes |
| Video Compression | H.265, H.264 (3 streams) |
| Audio Streaming | Yes – input connector for external mic |
| Protocols | TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SMTP, P2P (QR code) |
| Intelligent Video | IVS such as Perimeter Intrusion Detection, Human and Vehicle Detection, Face Detection, Motion Detection. |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Power Over Ethernet | Yes |
| Ethernet | Ethernet (10/100 Base-T) |
| UPNP | Yes |
| In The Box | Free Software available from FAQ, Printed quick user guide, Installation template, Mounting screws and plugs |
| Warranty | 3 Year Warranty |
