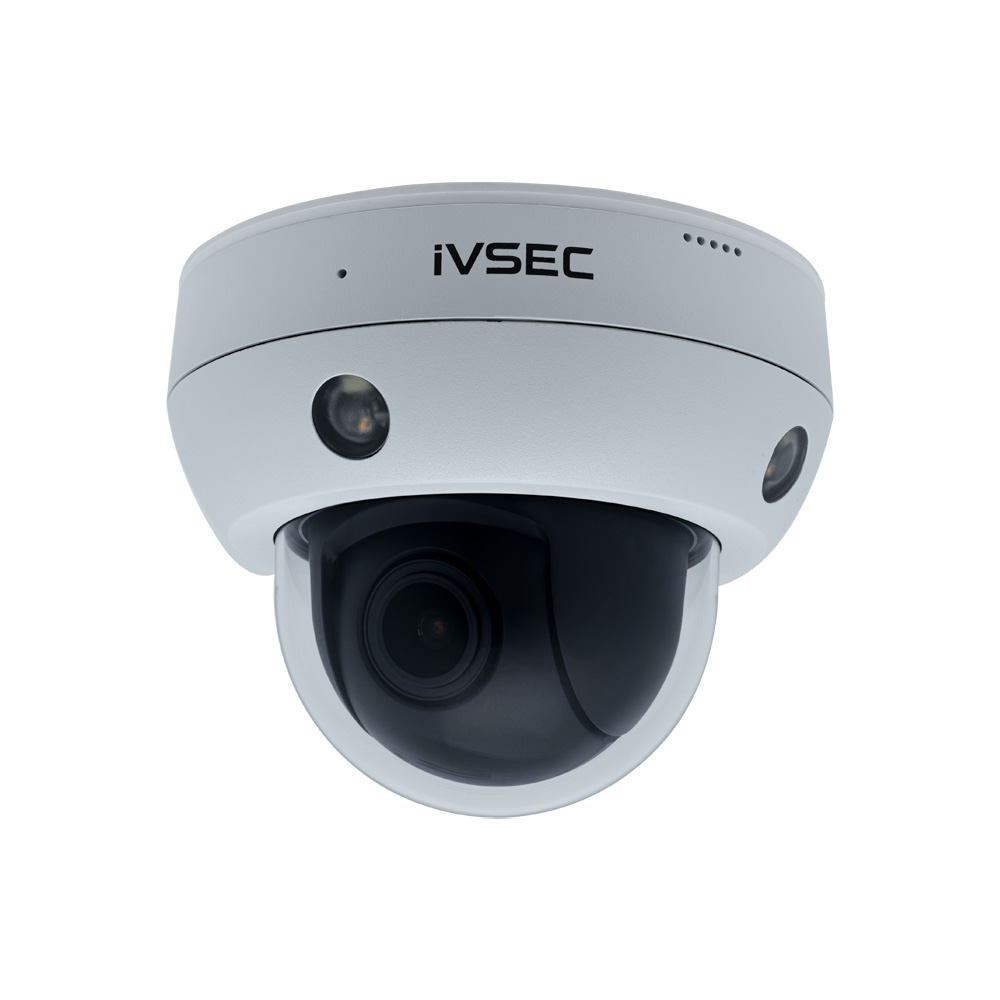

NC550ADX Security Camera
Security Camera
- 4MP
- Motorised Zoom
- 20 IR Distance
- Advanced Deterrent
- PTZ, Turret (Dome)
- IP67
Product Overview
Features
Engineered for reliable protection, NC550ADX Security Camera combines advanced imaging and intelligent analytics to deliver smarter security.
Crystal Clear Clarity
High resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
Capture the Moment
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
Cater to your surveillance needs
Device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
Monitor & Update Remotely
View live camera footage, receive alerts on-the-go, schedule alarms and more with the iVSEC App.
Full Vivid Colour
Advanced Features with Vibrant Color and High-Quality Imaging at Night.
Deter, Detect, and Defend
In built protection Siren, Flashing Lights, and Scheduling Assistant for Enhanced Security. Advanced Deterrent.
Value AI
Complete protection with accurate and targeted alerts to potential threats & reducing false alarms.
Professional AI
Now capable of processing Advanced Al features, thanks to the inclusion of a specifically designed Al Chipset.
Technical Specifications
| Camera Type | Dome |
| Image Sensor | 1/1.8″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) | 4 |
| Maximum Video Resolution | 2560 x 1440 |
| Frames Per Second (FPS) | 60 |
| Lens | 2.8-12 mm (H.FOV: 114.6 to 48.3°) |
| Lens Type | Motorised Zoom |
| Maximum Night IR Distance (M) | 20 |
| LED | IR |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF depends on firmware version | ONVIF (Profile S, Profile G, Profile T),HTTP API |
| Accessories | IV2456X |
| Outdoor Use | Yes |
| IP Rating | IP67 |
| IK Rating | IK10 |
| Day/Night Mode | Full color (Auto) |
| Image Enhancement | Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Intelligent Video (IVS) | Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection |
| Edge Recording microSD/SDHC Card | Micro SD/SDHC Card |
| Multiple Streams (encode format) | 3 Streams |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, TCP/IP, UDP, DHCP, PPPoE |
| Language | English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Cloud option (camera only) | Dropbox |
| Audio Streaming | Yes (microphone and speaker included) |
| Ethernet | Ethernet (10/100 Base-T) |
| Power Over Ethernet | Yes |
| Power Supply | Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption | < 14W |
| Connectors | RJ-45, DC Power Input, Reset Button |
| Operating Environment | -30~+60°C/less than ≤ 90% RH |
| In The Box | Free Software available from FTP, Printed quick user guide, installation template, mounting screws and plugs |
| Product Dimensions (H x W x L) mm | 153 x 120 x 120 |
| Packaging Dimensions (H x W x L) mm | 155 x 180 x 180 |
| Weight (Net) kg | 0.95 |
| Weight (Gross) kg | 1.18 |
| Warranty | 3 Year Warranty |
