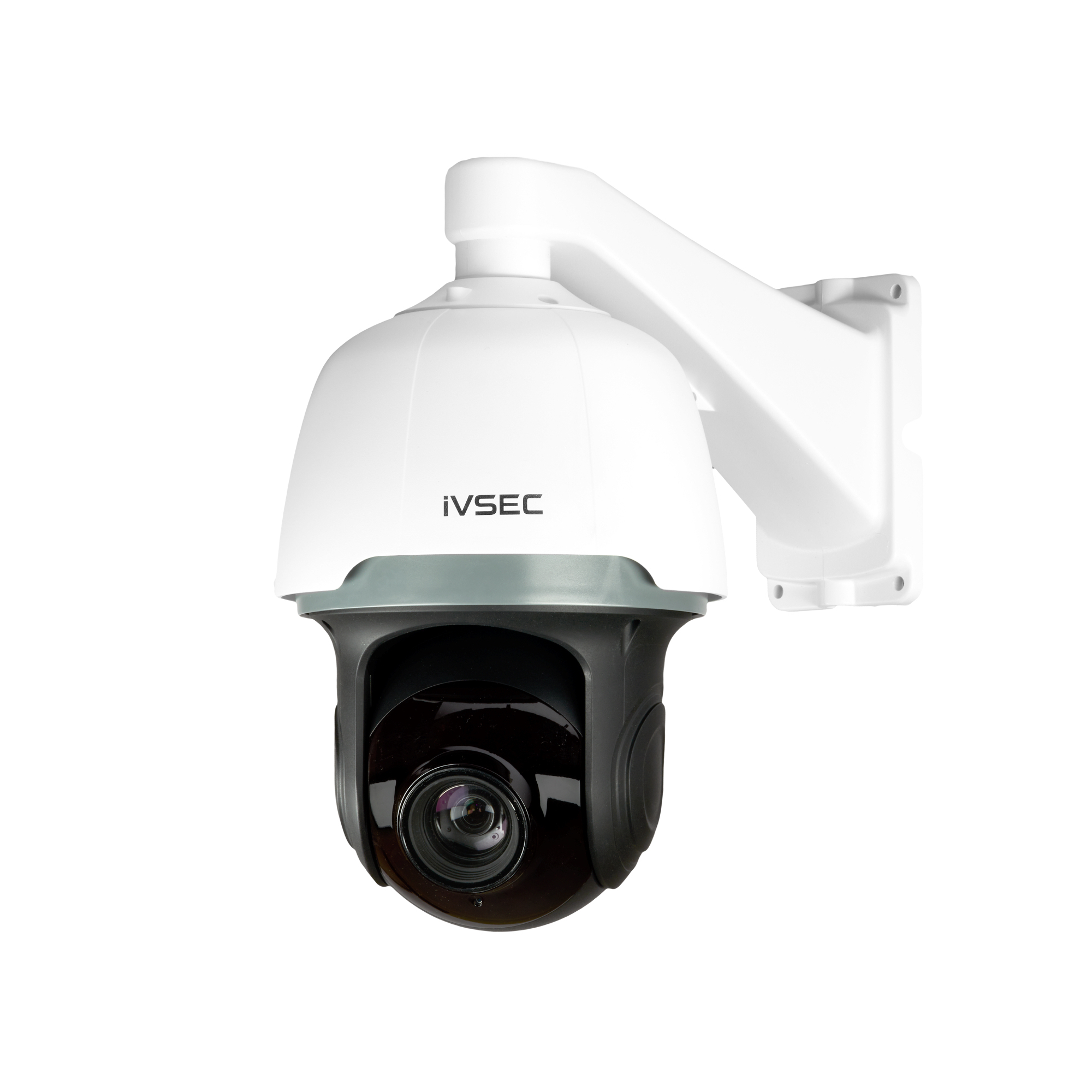

NC592XA Security Camera
Security Camera
- 5MP
- Motorised Pan, Tilt and Zoom
- PTZ
- IP67
Product Overview
Features
Engineered for reliable protection, NC592XA Security Camera combines advanced imaging and intelligent analytics to deliver smarter security.
Crystal Clear Clarity
High resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
Capture the Moment
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
Cater to your surveillance needs
Device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
Monitor & Update Remotely
View live camera footage, receive alerts on-the-go, schedule alarms and more with the iVSEC App.
Full Vivid Colour
Advanced Features with Vibrant Color and High-Quality Imaging at Night.
Value AI
Complete protection with accurate and targeted alerts to potential threats & reducing false alarms.
Made to Withstand the Elements
With a metal casing, IP66 provides weatherproof monitoring & incredible durability.
Video Management Software
Aggregate NVR/IP cameras easily. Pool viewable camera channels & feeds at numerous locations.
Technical Specifications
| Camera Type | PTZ |
| Image Sensor | 1/2.7″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) | 5 |
| Maximum Video Resolution | 2880 x 1620 |
| Frames Per Second (FPS) | 30 |
| Lens | 5.0mm -125mm (H.FOV: 53.3 to 3.8°) |
| Lens Type | Motorised Pan, Tilt and Zoom |
| Maximum Night IR Distance (M) | 100 |
| LED | IR |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF depends on firmware version | ONVIF (Profile S/G/T) 21.12 or greater, HTTP API |
| Accessories | IV2488X |
| Outdoor Use | Yes |
| IP Rating | IP67 |
| IK Rating | IK10 |
| Day/Night Mode | Auto |
| Image Enhancement | Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Active Deterrent | No |
| Intelligent Video (IVS) | Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection |
| Edge Recording microSD/SDHC Card | Micro SD/SDHC Card |
| Multiple Streams (encode format) | 3 Streams |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Protocols | TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SMTP, P2P (QR code) |
| Language | English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Cloud option (camera only) | Dropbox |
| Audio Streaming | Yes – input connector for external mic, input connector for external speaker |
| Ethernet | Ethernet (10/100 Base-T) |
| Power Over Ethernet | Yes |
| Power Supply | Power over Ethernet IEEE 802.3at, DC12V |
| Power Consumption | < 14W |
| Connectors | RJ-45, DC Power Input, Audio In, Audio Out, Alarm in or out *1, reset button, SD card slot. |
| Operating Environment | -20ºC to 60ºC (14ºF-140ºF) Humidity: 90% RH |
| In The Box | Free Software available from FTP, Printed quick user guide, Installation template, Mounting screws and plugs |
| Product Dimensions (H x W x L) mm | 455 x 330 x 380 |
| Packaging Dimensions (H x W x L) mm | 455 x 330 x 380 |
| Weight (Net) kg | 2.00 |
| Weight (Gross) kg | 3.00 |
| Warranty | 3 Year Warranty |
