NVRs

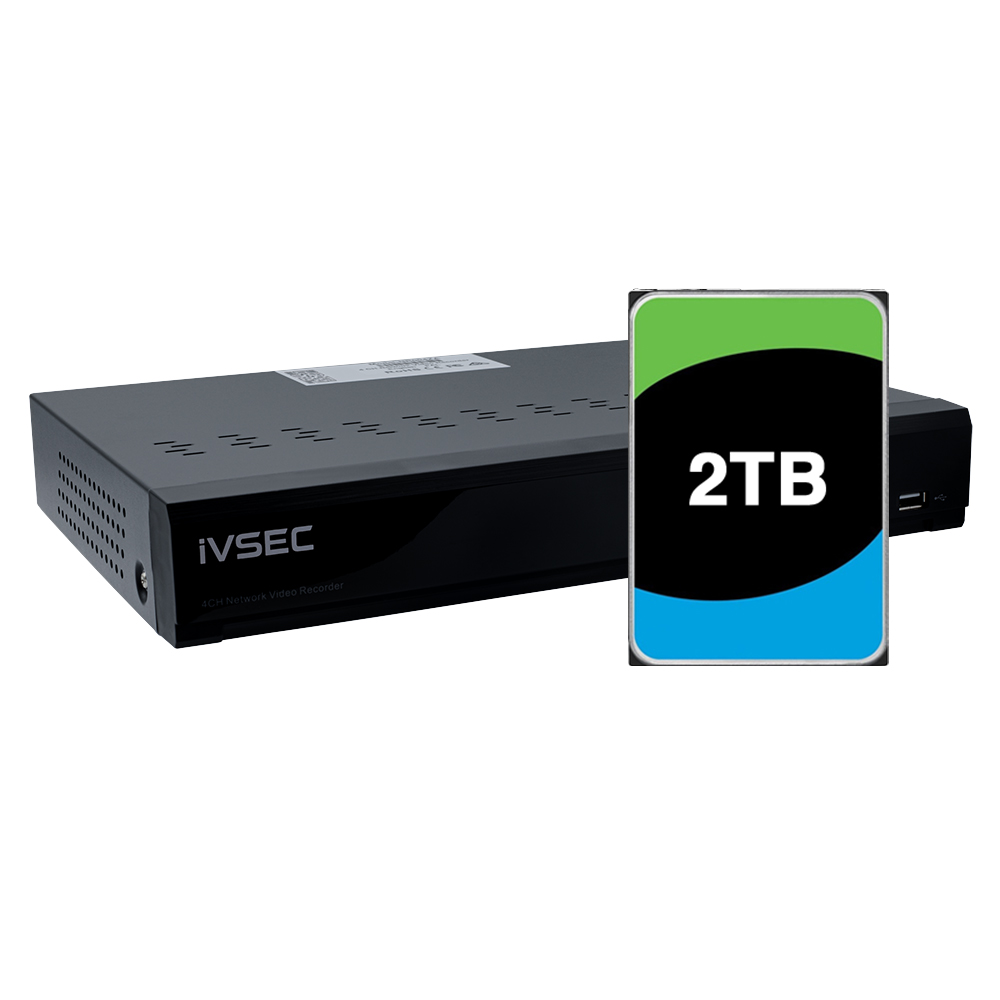

NR004XA-2TB NVR
NVR
Product Overview
4 channel PoE NVR with pre-installed 2TB HDD, ready to go out of the box.
Technical Specifications
| Maximum Channels | 4 |
| Maximum Video Resolution (Megapixels) | 8MP |
| Examples of Channels at a resolution with FPS | 50 Mbps |
| Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Video Output Resolution | 4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Image Display | 1, 4 |
| ONVIF depends on firmware version | ONVIF (Profile S/G/T) 21.12 or greater, HTTP API |
| Search Method | Continuous, Scheduling, Event Triggered By IVS filtering. Snapshot Searching, Tagging footage, Time Lapse, Slice (Multiple Snapshot Thumbnail Search Per Hour), General (Indicated Timeline Seach). |
| Total Storage Potential (TB) | 16 |
| HDD Bays, Size | Bays x 1, 2TB pre-installed, up to 16TB HDD |
| Intelligent Video (Dependant On Camera) | Motion Detection, IVS -Perimeter Intrusion Detection, Face Recognition, Human & Vehicle Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection, Video Tampering |
| Protocols | TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SMTP, P2P (QR code) |
| Language | English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Audio Streaming | Out |
| Power Over Ethernet | Yes |
| Power Supply | DC48V/1.2A |
| Power Consumption | 5W (Without HDD) |
| Connectors | HDD: 3.5″ SATA HDD Slot x 1, USB2 Female x 2, Ethernet: RJ-45 Port x 1 and 4 x PoE+ ports, HDMI, Audio out, Power Jack input, On off switch |
| Operating Environment | 10ºC to 50ºC (14ºF-122ºF) Humidity:Less than 90% RH |
| In The Box | Printed quick installation guide, Mouse, HDD screws, Power supply |
| Warranty | 2 Years Parts |
| Product Dimensions (H x W x L) mm | 53 x 300 x227 |
| Packaging Dimensions (H x W x L) mm | 100 x 430 x 270 |
| Weight (Net) kg | 1.3 |
| Weight (Gross) (kg) | 1.6 |
