NVRs

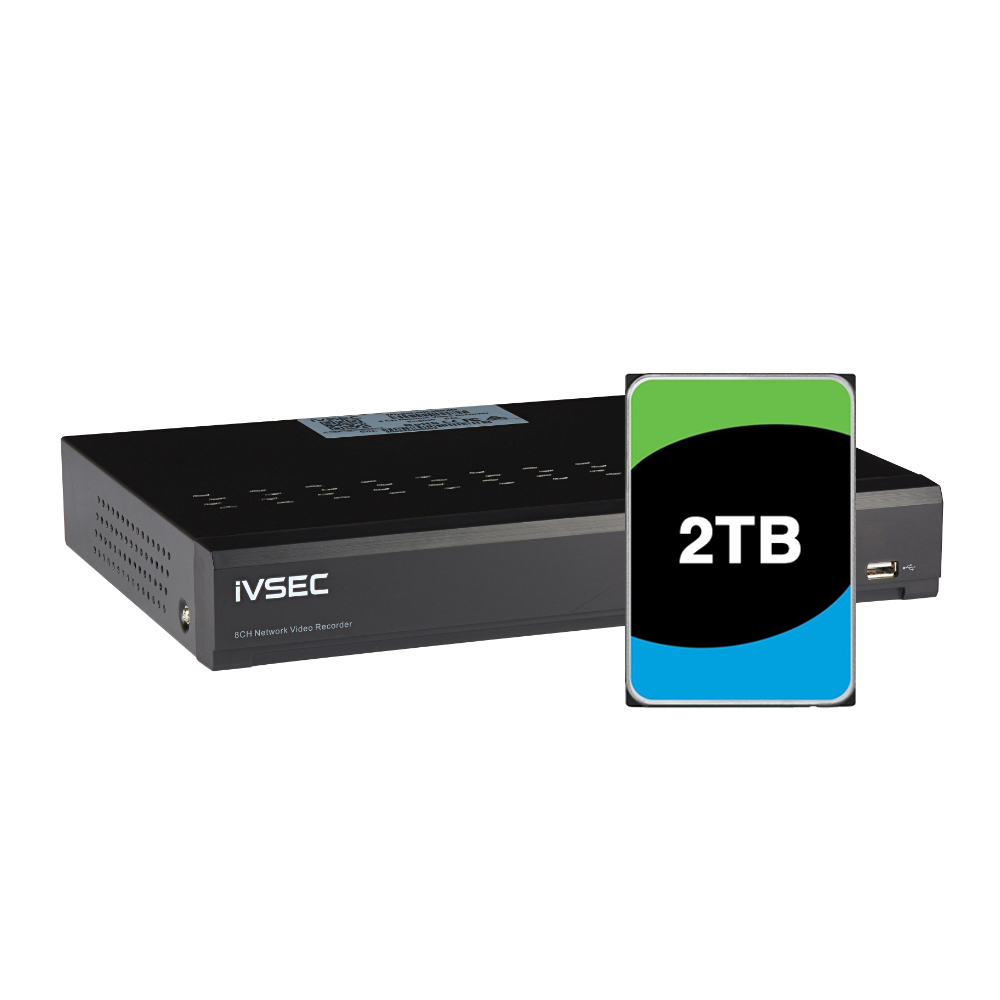

NR3082X-2TB NVR
NVR
Product Overview
Experience cutting-edge video technology with our 8 channel NVR. Enjoy a 128Mbps bandwidth for all your camera needs, 2 x HDD drive bays allow for plenty of recording retention, holding up to 32TB of footage. RAID adds data redundancy for your security needs. Stay in charge and react promptly with r
Technical Specifications
| Maximum Channels | 8 |
| Maximum Video Resolution (Megapixels) | 12MP |
| Examples of Channels at a resolution with FPS | 128 Mbps |
| Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Video Output Resolution | 4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Image Display | 1, 4, 6, 8 |
| ONVIF depends on firmware version | ONVIF (Profile S/G/T) 21.12 or greater, HTTP API |
| Search Method | Continuous, Scheduling, Event Triggered By IVS filtering. Snapshot Searching, Tagging footage, Time Lapse, Slice (Multiple Snapshot Thumbnail Search Per Hour), General (Indicated Timeline Seach). |
| Total Storage Potential (TB) | 32 |
| HDD Bays, Size | Bays x 2, 2TB pre-installed, up to 16TB per HDD |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Protocols | TCP, IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP, RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SMTP, P2P (QR code) |
| Language | English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Audio Streaming | Two Way |
| Power Over Ethernet | 8 ePoE ports |
| Power Supply | DC 48V, 2A |
| Power Consumption | 5W (Without HDD) |
| Connectors | HDD: 3.5″ SATA HDD Slot x 1, USB2 Female x 2, Gigabit Ethernet: RJ-45 Port x 1 and 8 x PoE+ports, HDMI, VGA, Audio in and out, Power Jack input, On off switch |
| Operating Environment | 5ºC to 40ºC (41ºF-113ºF) Humidity: 20%-80% RH |
| In The Box | Printed quick installation guide, Mouse, HDD screws, Power supply |
| Warranty | 2 Years Parts |
| Dimensions | 50 x 380 x 340 |
| Weight (kg) | 1.00 kg |
