NVRs

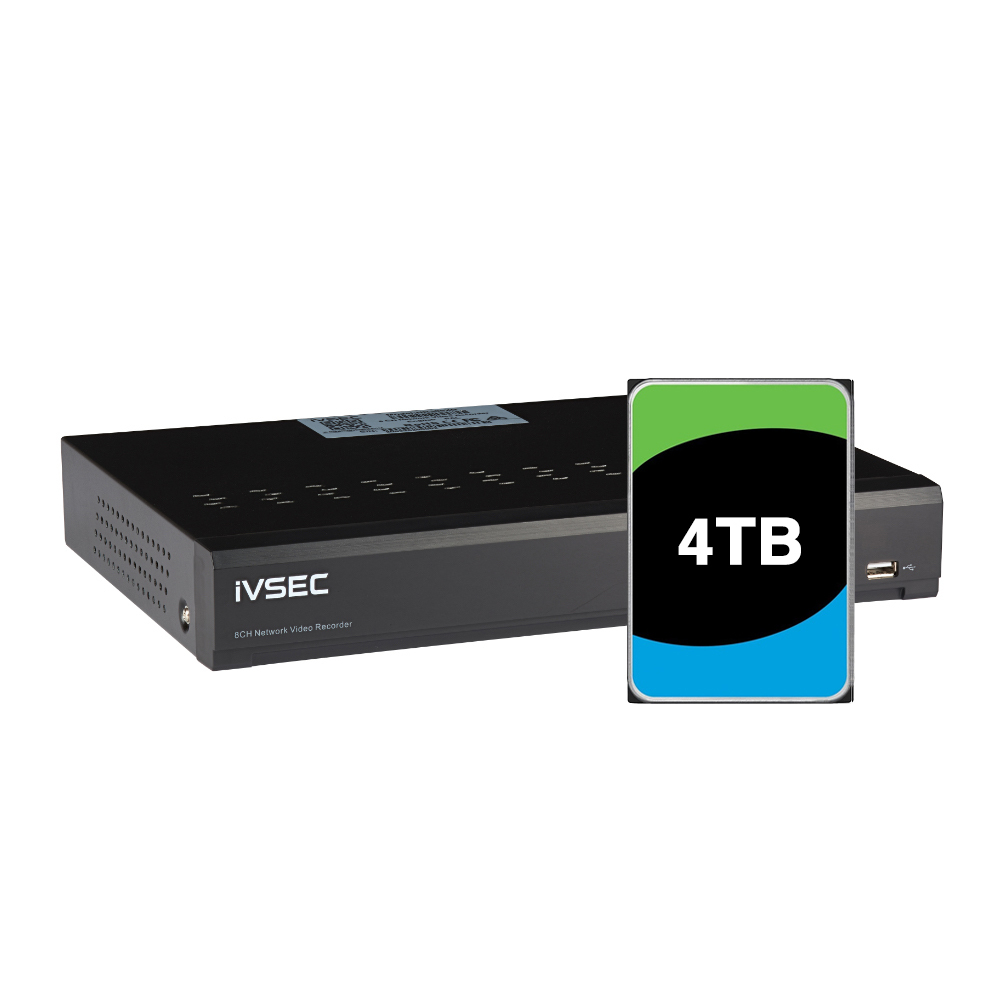

NR308XC-4TB NVR
NVR
Product Overview
Robust solution for secure video surveillance, 128 Mbps bandwidth, up to 16TB HDD.
Technical Specifications
| Maximum Channels | 8 |
| Maximum Video Resolution (Megapixels) | 12MP |
| Examples of Channels at a resolution with FPS | 128 Mbps |
| Video Compression | H.264, H.265 |
| Video Output Resolution | 4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Image Display | 1, 4, 6, 8, 9 |
| Search Method | Continuous, Scheduling, Event Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting) |
| Total Storage Potential (TB) | 16 |
| HDD Bays, Size | Bays x 1, 4TB pre-installed,Up to 16TB per HDD |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Protocols | TCP, HTTP, HTTPS, DHCP, DDNS, NTP, SMTP, PPPOE, RTSP, UPnP, ONVIF, P2P, QR Code |
| Language | English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Audio Streaming | Out |
| Power Over Ethernet Switch Ports | 8 up to 802.3at(30w) |
| Power Over Ethernet | Yes |
| Power Supply | DC48V/2A |
| Power Consumption | 8W （Without HDD） |
| Connectors | HDD: 3.5″ SATA HDD Slot x 1, USB2 Female x 2, USB3 Female x 1, Gigabit Ethernet: RJ-45 Port x 1 and 8 x PoE+ ports, HDMI and VGA, Alarm ports 8 in and 1 out, Audio out, Power Jack input, On off switch |
| Operating Environment | 5ºC to 45ºC (41ºF-113ºF) Humidity: 20%-80% RH |
| In The Box | Printed quick installation guide, Mouse, Remote control, HDD screws, Power supply. |
| Warranty | 24 months parts |
| Product Dimensions (H x W x L) mm | 53 x 300 x227 |
| Packaging Dimensions (H x W x L) mm | 100 x 430 x 270 |
| Weight (Net) kg | 1.7 |
| Weight (Gross) (kg) | 2 |
